Simpson Strong Tie Timber to Masonry Hanger

Available Sizes: 100 x 47mm | 150 x 47mm

Product Overview

The Simpson Strong Tie Timber to Masonry Hanger is a heavy-duty, high-performance connector designed to securely anchor timber joists to masonry structures. Engineered for strength, stability, and ease of installation, this hanger is ideal for use in construction and renovation projects involving brick, block, or concrete substrates. Available in two size configurations—100 x 47mm and 150 x 47mm—it is the preferred solution for creating reliable timber-to-masonry connections in floors, ceilings, and decking frameworks.

Boxed Weight

• 100 x 47mm: 420g

• 150 x 47mm: 500g

Each hanger is robustly constructed while remaining manageable and easy to work with on site.

Key Features

• Large Top Flange for Enhanced Performance
  The generously sized top flange distributes loads evenly into the masonry structure, ensuring a firm hold and increased resistance to downward force. This structural feature allows for higher load capacities and long-term durability.

• High Side Flanges to Prevent Joist Twisting
  Vertical side flanges provide lateral support for the timber joist, minimizing the risk of rotation or twisting over time. This improves structural stability and longevity, particularly in floors and decks where movement and shifting loads are common.

• Embossed Steel for Additional Strength
  The body of the hanger includes carefully designed embossments that reinforce the structure without adding unnecessary weight. These stiffened sections significantly increase load-carrying capabilities and overall durability.

• Built-In Inspection Slot
  Each hanger is equipped with a visual inspection slot, allowing contractors and inspectors to verify that the joist has been properly seated and fixed. This feature ensures compliance with safety standards and installation best practices.

Applications

• Timber Floor Joists to Masonry Walls
  Ideal for residential and commercial flooring systems where timber joists must be firmly anchored to block or brick walls.

• Ceiling Framing
  Suitable for connecting ceiling joists or rafters to masonry substrates, ensuring proper alignment and load transfer.

• Decks and Raised Platforms
  Use in outdoor or elevated structures where timber support beams must be anchored into masonry foundations or retaining walls.

• Renovation and Retrofitting Projects
  A great solution when updating older structures that require new timber-to-wall connections to meet modern safety standards.

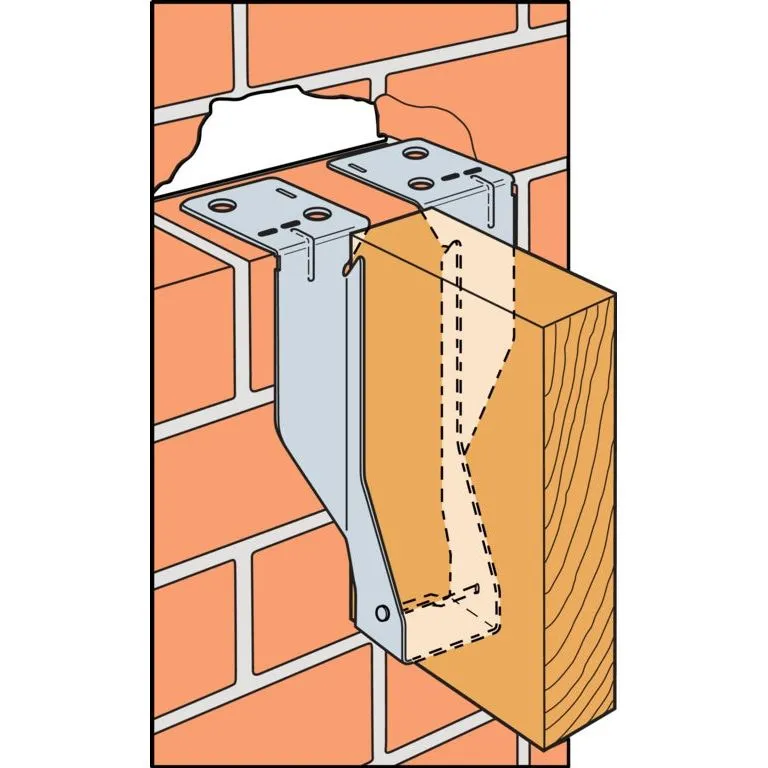

Installation Guidelines

1. Surface Preparation:
   Ensure the masonry surface is clean, dry, and structurally sound.

2. Fixing the Hanger:
   Use appropriate masonry fixings or plugs and screws (as specified by the manufacturer) to secure the top flange into the brick or concrete. Fasten all available holes for maximum strength.

3. Timber Placement:
   Insert the timber joist into the hanger and check through the inspection slot to confirm correct seating.

4. Joist Fixing:
   Use nails or screws in the side flange holes to securely fix the timber into place, ensuring tight fit and stability.

Benefits

• Reliable Load Transfer:
  Optimized design provides excellent support and minimizes risk of structural failure in load-bearing situations.

• Improved Build Speed:
  Preformed holes, inspection slot, and prong alignment features make for a faster and more accurate installation process.

• Durability:
  Galvanized steel construction ensures long-term resistance to corrosion and wear, even in challenging environments.

• Code Compliance:
  Meets or exceeds standard building regulations and is suitable for use in a wide range of building types and conditions.

Frequently Asked Questions (FAQ)

Q1: Can this hanger be used in exterior applications?
A1: Yes, when used with corrosion-resistant masonry fixings and properly treated timber, these hangers are suitable for outdoor use.

Q2: How is the correct installation confirmed?
A2: The built-in inspection slot allows easy visual confirmation that the timber joist is seated correctly inside the hanger.

Q3: What size timber is compatible with these hangers?
A3: The hangers are designed for timber widths of 47mm. Length-wise, choose 100mm or 150mm depth depending on the structural requirement.

Q4: Can I use this for timber-to-timber applications?
A4: No, this hanger is specifically designed for anchoring timber to masonry surfaces. For timber-to-timber connections, use a timber hanger variant.

Q5: Are fixings included with the hanger?
A5: Typically, fixings are not included and should be selected based on site conditions. Use Simpson Strong Tie-recommended masonry plugs/screws and joist nails for best results.

Summary

The Simpson Strong Tie Timber to Masonry Hanger is a high-strength, precision-engineered connector ideal for securing timber joists into masonry walls. With its large top flange, anti-twist side flanges, reinforced embossments, and inspection slot, it offers exceptional performance, ease of installation, and peace of mind for builders and contractors. Whether for residential floors, ceilings, or external decking systems, this hanger ensures safe, strong, and regulation-compliant timber-to-masonry connections.
