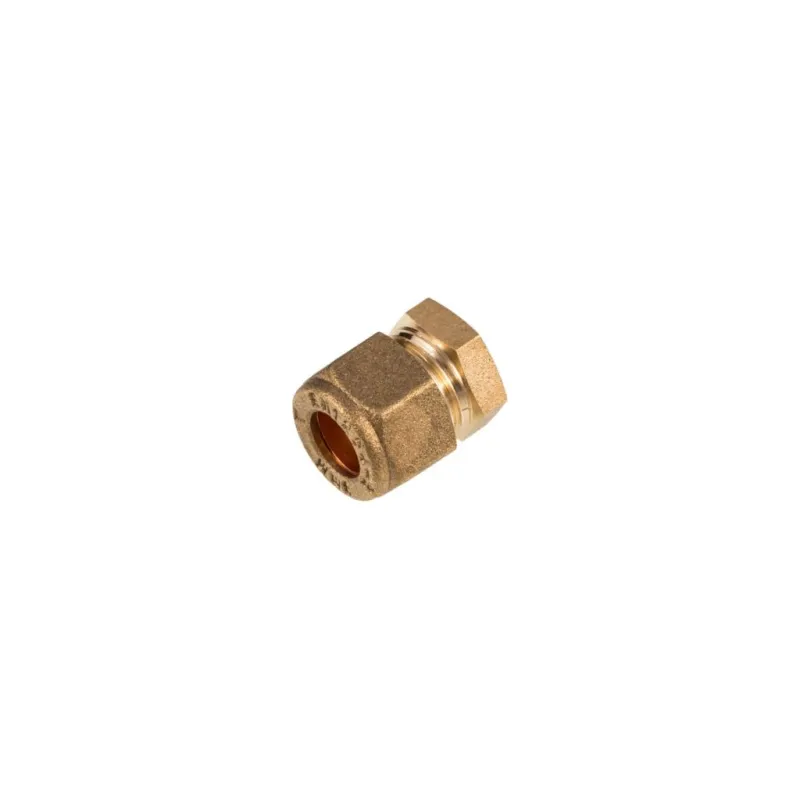

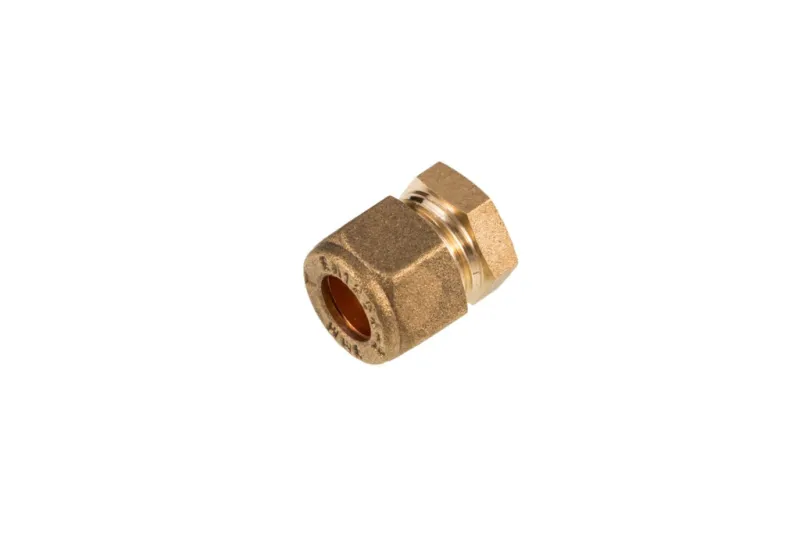

Securplumb WRAS Compression Stop End

Securplumb WRAS Compression Stop End – High-Integrity Copper Pipe End Cap (Pack of 5)

Reliable Sealing for Copper Pipework – WRAS Approved and Tool-Free Installation

The Securplumb WRAS Compression Stop End is designed to provide a secure, leak-proof seal at the end of copper pipework in plumbing and heating systems. These high-quality fittings are ideal for both temporary capping during maintenance and permanent sealing where future extensions may be anticipated. With no need for heat or soldering, these compression fittings offer a quick, tool-assisted solution that meets the highest industry standards.

Manufactured in accordance with WRAS (Water Regulations Advisory Scheme) approval, the Securplumb Compression Stop End guarantees material safety and long-lasting performance in potable water and heating installations.

Available Sizes and Technical Specifications

Key Features

WRAS Approved

Each fitting is certified by the Water Regulations Advisory Scheme, confirming compliance for use with potable water systems in the UK. The materials used will not compromise water quality or hygiene.

Compression Fit Design

The compression stop end uses a mechanical jointing method that eliminates the need for soldering or special tools. This makes it ideal for installations where heat cannot be applied, or where time efficiency is crucial.

Durable and Reusable

Made from corrosion-resistant, high-quality brass, these fittings are suitable for use in both new installations and repairs. The reusable nature of compression joints makes them a flexible choice for dynamic plumbing projects.

Secure End-Cap Solution

Ideal for sealing off unused pipe ends in closed plumbing systems or future branch connections. Commonly used in maintenance work, remodeling, or when isolating sections of a pipe system.

Compatible with Standard Copper Pipe

Designed to fit standard 15mm and 22mm copper piping, ensuring a seamless and watertight connection in both domestic and commercial environments.

Applications

• Central heating systems

• Potable hot and cold water supply

• Plumbing maintenance and repair

• Temporary capping during system flushing or pressure testing

• Future-proofing pipework extensions

Whether you’re sealing off a disused spur or preparing a system for future upgrades, Securplumb Compression Stop Ends offer dependable results.

Installation Guidelines

1. Pipe Preparation

   • Ensure the pipe is clean, round, and free of burrs. Cut to a square end for optimal sealing.

2. Fitting Assembly

   • Loosen the compression nut and slide it onto the pipe along with the olive (compression ring).

3. Connection

   • Insert the pipe into the stop end body, ensuring it seats fully.

   • Tighten the compression nut with a spanner until resistance is felt, then an additional quarter-turn to secure the joint.

4. Testing

   • Once installed, pressure test the system to confirm the joint is leak-free.

Note: Avoid overtightening to prevent distortion of the olive or the fitting.

Product Care and Maintenance

• Ensure joints are kept free from debris or excessive mechanical strain.

• Periodically check capped ends for signs of wear or leakage in exposed systems.

• Store fittings in a dry place to prevent surface oxidation prior to use.

Frequently Asked Questions (FAQ)

Q: Can I use these fittings on plastic pipe?
A: These fittings are designed primarily for use with copper pipe. When used with plastic pipe, an appropriate insert must be used, and manufacturer guidelines followed.

Q: Are these suitable for drinking water?
A: Yes. These stop ends are WRAS approved and safe for potable water systems.

Q: Can these fittings be reused?
A: Yes, compression fittings can be reused if disassembled correctly and inspected for wear. Replacing the olive is recommended to maintain sealing integrity.

Q: Is any special tool required for installation?
A: Only standard spanners or adjustable wrenches are required—no soldering or specialist tools needed.

Q: Are these suitable for outdoor pipework?
A: Yes, though it’s recommended to protect the fitting from extreme weather exposure and mechanical damage where possible.

Why Choose Securplumb Compression Fittings?

Securplumb WRAS Compression Stop Ends are the professional’s choice for dependable, efficient plumbing solutions. Their ease of use, WRAS compliance, and robust brass construction make them ideal for a wide range of domestic and commercial applications. Whether you’re working on new builds, renovations, or emergency maintenance, Securplumb offers trusted performance without compromise.
