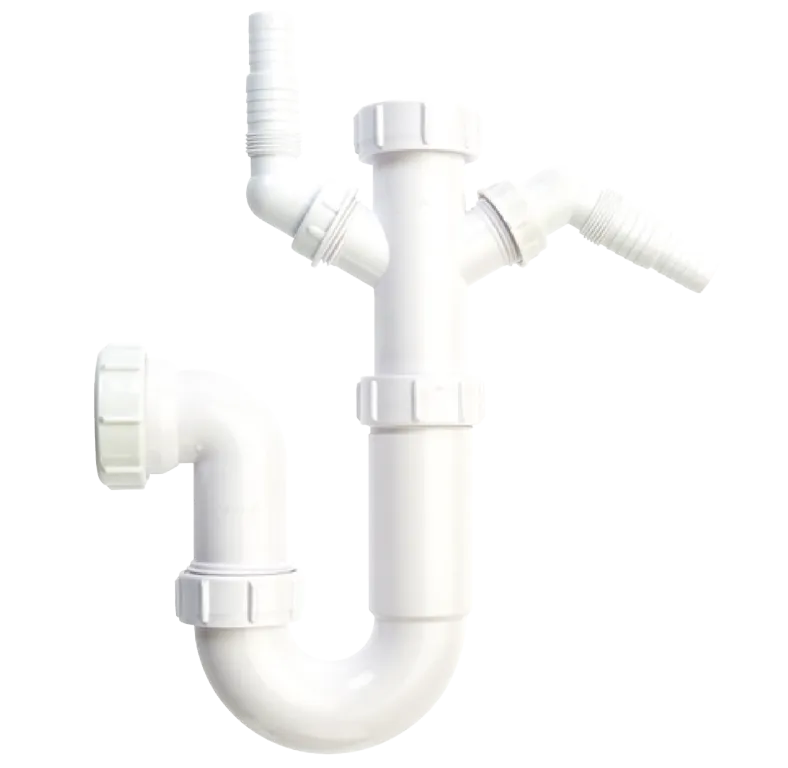

Securplumb Washing Machine Waste Trap – 2 Spigot (40 x 75mm)

Product Overview

The Securplumb Washing Machine Waste Trap with 2 Spigots (40 x 75mm) is a practical and efficient waste plumbing solution designed to accommodate one or two appliances, such as washing machines or dishwashers, discharging wastewater into a single outlet. Featuring a dual spigot design and a standard 75mm water seal depth, this trap provides excellent odour protection while offering flexibility for dual-appliance connections.

Manufactured from high-quality materials and designed for straightforward installation, this compact yet robust waste trap is a reliable choice for both residential and light commercial use.

Key Features & Benefits

• Dual Appliance Connection
  Features 2 x 20/23mm spigots to allow waste water discharge from two appliances—ideal for homes with both a washing machine and dishwasher.

• Effective Odour Seal
  Incorporates a 75mm water seal, complying with UK plumbing regulations to prevent foul odours from entering the room.

• Robust & Durable Construction
  Made from high-strength polypropylene, resistant to heat, detergent, and everyday wear and tear.

• Universal 40mm Pipe Compatibility
  Easily connects to standard 40mm waste pipe systems using push-fit or compression fittings.

• Compact, Easy-to-Install Design
  Slim profile ideal for tight installation spaces beneath kitchen units or behind appliances.

• Service-Friendly Access
  Easy to disconnect or clean in the event of blockages, thanks to straightforward fittings and wide access points.

Specifications

• Product Type: Appliance Waste Trap

• Configuration: 2 x spigot connection (20/23mm)

• Waste Pipe Size: 40mm

• Water Seal Depth: 75mm

• Material: Chemical- and heat-resistant plastic (polypropylene)

• Boxed Dimensions:

  • Width: 22.0 cm

  • Height: 5.5 cm

  • Depth: 36.0 cm

  • Weight: 340g

Applications

• Washing machine installations

• Dishwasher installations

• Combined appliance setups

• Domestic kitchens, utility rooms, and laundry spaces

• Suitable for new installations or replacement of existing appliance traps

Installation Guide

1. Prepare Pipework: Ensure all pipe ends are clean and square-cut.

2. Fit Trap: Connect the trap to a 40mm waste pipe using compression or push-fit fittings.

3. Attach Appliance Hoses: Slide hoses over the spigots and secure them with hose clips.

4. Test System: Run water or an appliance cycle to check for leaks.

5. Maintenance Access: The design allows for easy removal and reinstallation if cleaning or inspection is required.

FAQs

Q: Can I use this trap for a single appliance only?
A: Yes. You can cap one of the spigots or leave it unused. It’s suitable for both single and dual connections.

Q: Are hose clips included?
A: No, hose clips are not included but are recommended for secure hose attachment.

Q: What size hoses does it accept?
A: The spigots fit 20mm to 23mm internal diameter hoses—standard sizes for most washing machines and dishwashers.

Q: Is this suitable for vertical and horizontal installations?
A: This trap is designed primarily for horizontal pipe runs but may be adapted for vertical layouts depending on space and access.

Why Choose Securplumb?

Securplumb offers trusted, regulation-compliant plumbing solutions for every home. The 2 Spigot Washing Machine Waste Trap is engineered for practicality, longevity, and ease of use—helping you keep your appliance waste system running cleanly and efficiently.
