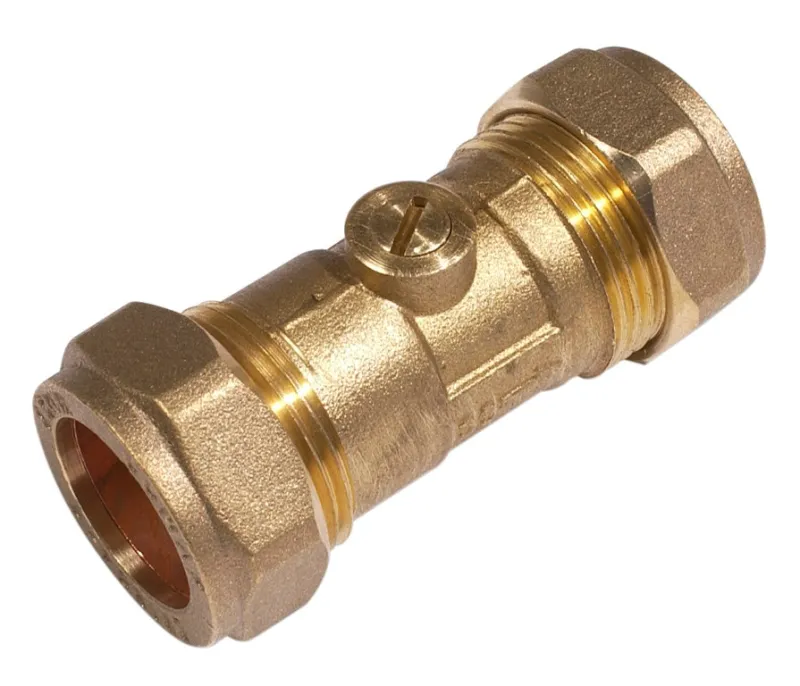

Securplumb L/P CXC Brass Isolating Valve 15mm

Securplumb L/P CXC Brass Isolating Valve 15mm

Securplumb L/P CXC Brass Isolating Valve 15mm

Product Overview:

The Securplumb L/P CXC Brass Isolating Valve 15mm is a high-quality, low-pressure compression x compression (CXC) isolation valve, engineered to provide safe, reliable, and convenient shut-off control in plumbing systems. Designed for use with 15mm copper pipework, this brass valve is ideal for isolating specific sections of a water supply during maintenance, installation, or emergency repair work—without disrupting the entire system.

Manufactured from premium-grade brass, the valve ensures long-term durability and corrosion resistance. Its compact form factor makes it suitable for tight installation spaces, while its precision engineering guarantees a watertight seal and dependable performance.

Product Specifications:

• Product Type: L/P CXC Brass Isolating Valve

• Connection Type: Compression x Compression (15mm)

• Material: Solid brass body

• Working Pressure: Suitable for low-pressure systems

• Boxed Weight: 70g

• Operation: Slotted screw or lever-operated shut-off

• Finish: Natural brass

Key Features:

• Full Isolation Functionality: Allows complete shut-off of water to a fixture or section of pipe

• Durable Brass Construction: Resistant to corrosion and mechanical wear for extended service life

• Low Pressure System Compatible: Specifically suited for systems with lower operating pressure

• Compression Connections: Easy to install—no soldering or specialist tools required

• Compact and Versatile: Ideal for tight spaces such as under sinks, behind appliances, or in boxed-in pipework

• Leak-Resistant: Precision-engineered for a secure, watertight seal

Applications:

• Isolating taps, washing machines, dishwashers, and other water-fed appliances

• Plumbing maintenance and repair work

• Domestic and light commercial water systems

• Suitable for use in concealed or accessible pipework locations

Installation Instructions:

1. Turn Off Main Water Supply: Before installation, ensure the water supply is shut off.

2. Cut Pipe to Size: Use a pipe cutter for a clean edge and deburr the ends.

3. Slide on Compression Nuts and Olives: Place them on each end of the pipe.

4. Insert Valve: Fit the valve between the pipe ends, ensuring correct flow direction (if marked).

5. Tighten Joints: Use two adjustable spanners to secure both ends without over-tightening.

6. Test for Leaks: Slowly reopen the water supply and inspect all joints for leaks.

Care & Maintenance:

• Operate the valve periodically to prevent seizing, especially in hard water areas

• Inspect during routine plumbing checks for signs of wear, corrosion, or leakage

• Keep valve accessible where possible for easy servicing

Frequently Asked Questions (FAQ):

Q1: What does L/P mean?
L/P stands for “Low Pressure,” indicating that the valve is suitable for use in systems where water pressure is lower than typical mains-fed systems.

Q2: Can this valve be used in hot water systems?
Yes, it is suitable for both hot and cold water applications, provided the system is within the valve’s pressure and temperature limits.

Q3: Do I need pipe inserts for installation?
Only if you’re using plastic pipe. For copper pipe, standard compression fittings are sufficient without inserts.

Q4: Can I install this valve vertically or horizontally?
Yes, the valve can be installed in any orientation, although the direction of flow (if marked) should be followed for optimal performance.

Conclusion:

The Securplumb L/P CXC Brass Isolating Valve 15mm is a dependable, high-quality plumbing component ideal for service, maintenance, and repair tasks. Built from robust brass and featuring compression fittings for fast and secure installation, it’s the perfect solution for controlling water flow in low-pressure systems. Whether you’re a professional tradesperson or a DIY enthusiast, this valve ensures convenience, safety, and performance in any setting.
