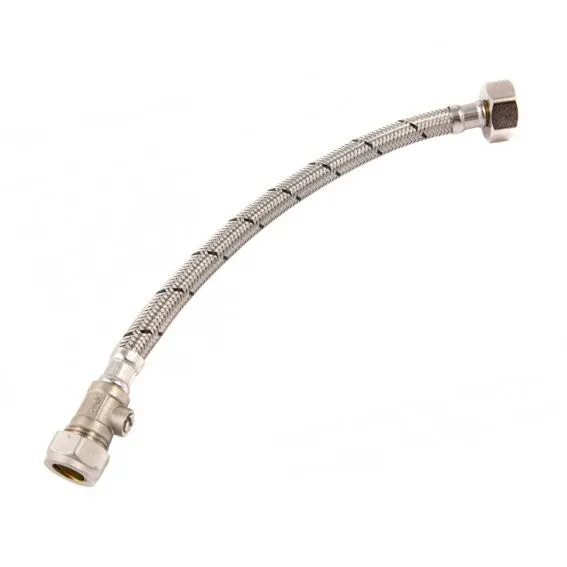

Securplumb Flex Tap Connector & Valve – 300mm x 22mm x 3/4″ (Pack of 2)

Product Overview:

The Securplumb Flex Tap Connector & Valve is a premium flexible plumbing solution designed to provide a secure and convenient connection between 22mm supply pipes and 3/4″ threaded taps. Supplied as a pack of two, these 300mm long connectors combine flexibility with integrated isolation valves, allowing quick shut-off of water to individual taps for maintenance or repair without disrupting the entire system.

Constructed with a durable braided stainless steel exterior and high-quality brass fittings, these connectors offer long-lasting performance, corrosion resistance, and ease of installation. The integrated quarter-turn isolation valve enhances convenience and control, making these connectors an ideal choice for both domestic and commercial plumbing applications.

Product Specifications:

• Brand: Securplumb

• Product Type: Flexible Tap Connector with Integrated Isolation Valve

• Pack Size: 2 connectors

• Length: 300mm

• Inlet Connection: 22mm compression fitting

• Outlet Connection: 3/4″ BSP female thread

• Material: Stainless steel braided hose with EPDM rubber inner liner and brass fittings

• Valve Type: Quarter-turn isolation valve integrated within the connector

• Boxed Weight: 490g

• Typical Working Pressure: Up to 10 bar (check system specifications)

• Temperature Range: -5°C to +85°C (suitable for hot and cold water)

• Application: Ideal for domestic and commercial tap connections requiring flexibility and local isolation

Key Features:

• Integrated Isolation Valve: Enables individual tap shut-off without affecting the wider plumbing system

• Flexible Hose Design: Allows easy installation even in confined or awkward spaces

• Durable Construction: Stainless steel braid protects the hose from damage and corrosion

• Reliable, Leak-Proof Connections: Compression and threaded fittings ensure secure and tight joints

• Versatile Application: Suitable for kitchen sinks, wash basins, outdoor taps, and commercial installations

Typical Uses:

• Connecting 3/4″ threaded taps to 22mm supply pipes in kitchens, bathrooms, or commercial settings

• Facilitating fast tap replacement or maintenance by isolating individual outlets

• Installing in areas where rigid piping is difficult or impractical

• Enabling local isolation for water saving and emergency shut-off

Installation Instructions:

1. Turn Off Water Supply: Before installation, ensure the main water supply is isolated and system depressurized.

2. Prepare Pipework: Cut 22mm copper pipe cleanly and remove any burrs or rough edges.

3. Fit Compression End: Slide the compression nut and olive onto the pipe, insert pipe into connector fitting, then tighten securely using a wrench.

4. Connect to Tap: Screw the 3/4″ BSP female threaded end onto the tap tail, using a rubber washer or PTFE tape as required to ensure a watertight seal.

5. Check Valve Operation: Confirm that the quarter-turn valve operates smoothly and is positioned for easy access.

6. Test for Leaks: Slowly restore water supply and observe all joints under pressure for leaks.

Care and Maintenance:

• Regular Inspection: Periodically check the hose and fittings for signs of wear, damage, or leaks.

• Operate Valve Occasionally: Turn the isolation valve fully on and off to prevent seizure and ensure reliable operation.

• Avoid Kinking: Maintain smooth bends in the hose during and after installation to preserve hose integrity.

• Replace if Damaged: Flexible hoses should be replaced if there are any signs of cracks, bulging, or corrosion.

Frequently Asked Questions (FAQ):

Q1: What is the benefit of the integrated isolation valve?
It allows for quick, localized shut-off of water to the tap without needing to isolate the whole plumbing system.

Q2: Can this connector handle hot water?
Yes, it is designed to operate with hot and cold water supplies up to approximately 85°C.

Q3: Are these connectors compatible with plastic pipe?
Yes, with the use of suitable pipe inserts and correct installation practices, they can be used with plastic pipe systems.

Q4: What tools do I need to install these connectors?
A pair of adjustable spanners or wrenches is typically all that’s required. PTFE tape may be used on the threaded end for enhanced sealing.

Q5: How often should these flexible connectors be replaced?
Generally, every 5 to 10 years depending on system conditions and wear, or sooner if any damage or leaks occur.

Conclusion:

The Securplumb Flex Tap Connector & Valve 300mm x 22mm x 3/4″ (Pack of 2) offers a versatile, durable, and user-friendly solution for connecting taps in domestic and commercial plumbing systems. Its combination of flexibility, integrated isolation valve, and robust construction ensures reliable performance and ease of maintenance, making it an excellent choice for professionals and homeowners alike.
