Securplumb C P Straight Radiator Valve 15mm

Securplumb C P Straight Radiator Valve 15mm

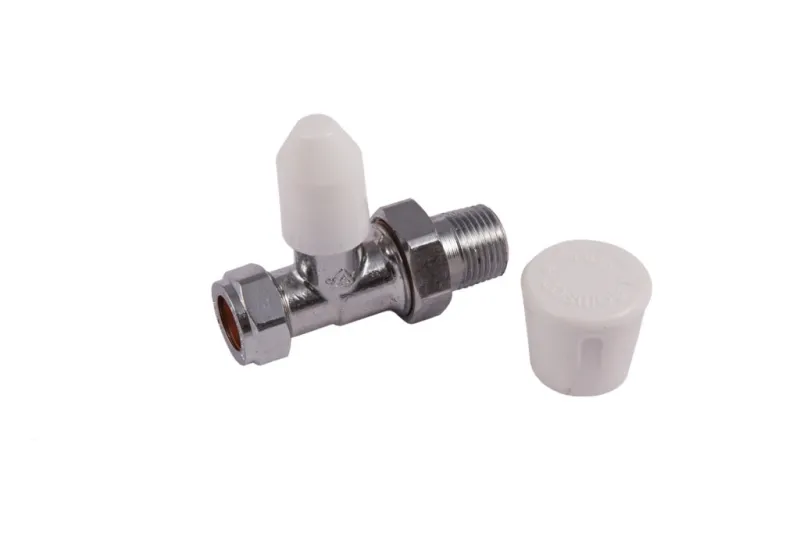

Securplumb Chrome Plated Straight Radiator Valve 15mm

Product Overview:

The Securplumb Chrome Plated (C P) Straight Radiator Valve 15mm is a premium-quality component designed for use in central heating systems, offering efficient and reliable control of water flow to radiators. With its robust construction and stylish chrome finish, this straight radiator valve is ideal for installations where pipework enters the radiator in a straight line, providing both aesthetic appeal and functional performance.

Manufactured from durable brass and finished with high-grade chrome plating, this valve is resistant to corrosion and wear, ensuring long-lasting operation. It is compatible with 15mm copper pipework and standard radiator threads, making it suitable for a wide range of domestic and commercial heating installations.

Product Specifications:

• Product Type: Straight Radiator Valve

• Connection Size: 15mm compression inlet

• Material: Brass with chrome-plated finish

• Configuration: Straight (in-line connection)

• Boxed Weight: 205g

• Operation: Manual turn handle for on/off control

• Finish: Polished chrome

Key Features:

• Straight Valve Design: Perfect for installations where pipework enters the radiator horizontally or vertically in line

• Chrome Plated Finish: Offers a modern look while protecting against corrosion and tarnishing

• Manual Flow Control: Allows users to manually isolate or open water flow to the radiator

• Durable Construction: Made from heavy-duty brass for longevity and reliability

• Compression Connection: Ensures a secure fit to 15mm copper pipework with minimal installation effort

• Universal Fit: Compatible with most UK standard radiators and heating systems

Applications:

• Central heating systems in residential and commercial buildings

• Ideal for radiators requiring a straight-line valve connection

• New installations, replacements, or upgrades of radiator valves

• Use in exposed or visible settings where appearance is important

Installation Instructions:

1. Turn Off Heating System: Ensure the central heating system is turned off and fully cooled.

2. Drain the Radiator: Use a bleed key or valve to release any pressure and drain water.

3. Prepare Pipe and Radiator Connection: Remove the old valve (if applicable) and clean the threads and pipe ends.

4. Fit the Valve: Connect the 15mm compression side to the pipe and the threaded side to the radiator tail.

5. Seal and Tighten: Apply PTFE tape if needed on radiator threads. Use appropriate tools to tighten connections.

6. Refill and Test: Refill the system, bleed the radiator, and check for leaks.

Care & Maintenance:

• Check periodically for any signs of wear, corrosion, or leaking

• Clean chrome surface with a soft cloth—avoid harsh chemicals

• Exercise the valve periodically to prevent seizing, especially before winter use

Frequently Asked Questions (FAQ):

Q1: What’s the difference between a straight and angled radiator valve?
A straight valve connects pipework that runs directly into the radiator horizontally or vertically. Angled valves are used when the pipe comes from the floor or wall at a 90° angle.

Q2: Can this valve be used with plastic pipe?
Yes, but ensure the correct pipe inserts are used to maintain a secure and leak-proof connection.

Q3: Is this valve thermostatic?
No, this is a manual radiator valve. For temperature control, a thermostatic radiator valve (TRV) would be required.

Q4: Will this fit any radiator?
This valve fits most standard UK radiators with 1/2″ BSP threads and 15mm pipework.

Conclusion:

The Securplumb Chrome Plated Straight Radiator Valve 15mm offers a professional-grade solution for managing water flow in your heating system. With its stylish chrome finish and solid brass build, it combines durability, functionality, and aesthetic appeal—making it the perfect choice for modern radiator installations.
