Securplumb Brass Poly Stopcock 15×25

Securplumb Brass Poly Stopcock 15×25

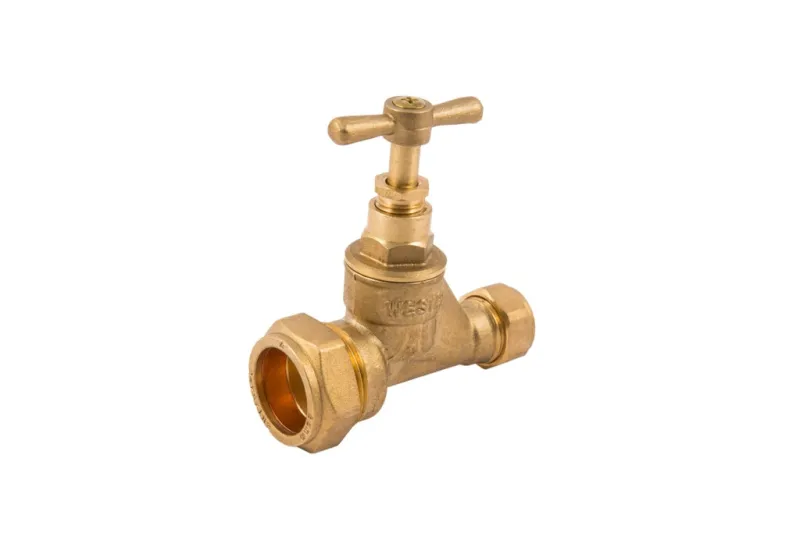

Securplumb Brass Poly Stopcock – 15mm x 25mm

Product Overview:

The Securplumb Brass Poly Stopcock 15×25 is a premium-quality valve designed for precise control of water flow within domestic and commercial plumbing systems. Featuring a robust 15mm copper compression outlet and a 25mm MDPE (medium-density polyethylene) inlet, this stopcock provides a reliable transition between underground polyethylene supply pipes and internal copper plumbing systems.

Manufactured from solid brass, the stopcock is engineered to withstand high pressure and harsh environmental conditions, making it suitable for both above- and below-ground installations. It is an essential fitting for main water supply control and emergency shut-off applications, particularly where MDPE water service pipe is used.

Product Specifications:

• Product Type: Stopcock / Inline Isolation Valve

• Inlet Size: 25mm MDPE (compression fitting)

• Outlet Size: 15mm copper pipe (compression fitting)

• Material: Solid brass body with polymer compression nut

• Finish: Natural brass

• Boxed Weight: 400g

• Connection Type: Compression (poly x copper)

• Operating Type: Manual, quarter-turn stopcock handle

• Application: Potable water supply systems

• Compliance: Compatible with UK water regulations (WRAS compliant when installed correctly)

Key Features:

• Dual Material Compatibility: Connects 25mm MDPE pipe to 15mm copper pipe

• Heavy-Duty Brass Body: Offers long-term durability, corrosion resistance, and high-pressure tolerance

• Reliable Shut-Off: Manual stopcock design provides secure flow isolation for maintenance and emergencies

• Simple Installation: No soldering required—secure compression fittings ensure a tight, leak-free seal

• Versatile Use: Suitable for underground water mains, service entrances, outdoor taps, and utility connections

• Maintenance-Free Operation: Robust internal mechanism built for years of dependable use

Typical Applications:

• Domestic water main isolation

• Outdoor and underground plumbing systems

• Transition between MDPE supply and internal copper pipework

• Water meter installations and service entry points

• Agricultural and irrigation infrastructure

Installation Guidelines:

1. Prepare Pipework: Cut and deburr the MDPE and copper pipes cleanly before insertion.

2. Fit Poly End: Insert the 25mm MDPE pipe into the compression fitting. Ensure the internal pipe support sleeve (not included) is used to prevent collapse.

3. Connect Copper End: Insert 15mm copper pipe into the compression end. Tighten the nut securely using appropriate spanners.

4. Test System: After installation, slowly restore water pressure and check all joints for leaks.

Note: Use appropriate pipe inserts for MDPE to ensure a correct seal and structural integrity. Installation should follow all applicable plumbing regulations.

Care and Maintenance:

• Check Annually: Test the stopcock to ensure it can be opened and closed easily

• Keep Accessible: Ensure the stopcock remains accessible in case of emergency shut-off

• Protect Underground Installations: Use proper housing or inspection chambers for underground use

Frequently Asked Questions (FAQ):

Q1: Can this stopcock be used underground?
Yes, it is suitable for underground installation when properly protected in an inspection chamber or valve box.

Q2: Do I need an insert for the 25mm MDPE pipe?
Yes, an MDPE pipe insert is essential to ensure a secure and leak-free connection.

Q3: Is this stopcock WRAS approved?
When installed with WRAS-compliant pipework and fittings, this valve meets UK water regulation standards.

Q4: Can this valve be used in hot water systems?
No. This stopcock is intended for cold potable water applications and should not be used with hot water.

Conclusion:

The Securplumb Brass Poly Stopcock 15×25 is a reliable and durable solution for managing water flow in mixed-material systems, particularly where 25mm MDPE pipe transitions to 15mm copper. Whether for new installations or replacement work, its solid brass construction and precision design ensure long-lasting performance and peace of mind in both residential and commercial settings.
