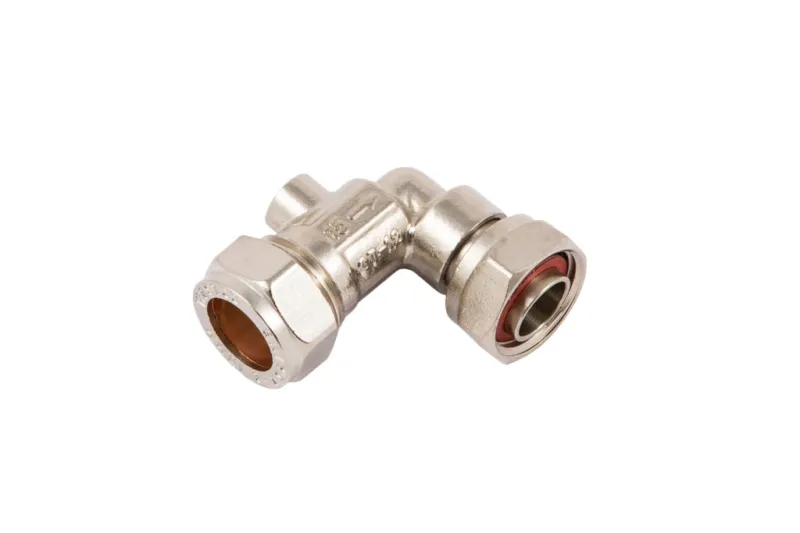

Securplumb Angled Chrome Plated Service Valve 15 x 1/2

Securplumb Angled Chrome Plated Service Valve 15 x 1/2

Securplumb Angled Chrome Plated Service Valve 15 x 1/2″

Product Overview:

The Securplumb Angled Chrome Plated Service Valve 15 x 1/2″ is a high-quality, durable plumbing component designed to provide secure isolation of water flow to household appliances and fixtures. This angled valve features a compression connection on one end (15mm) and a 1/2″ BSP male or female threaded end on the other, making it ideal for connecting taps, toilets, and other water-fed fittings. Its sleek chrome-plated finish ensures both corrosion resistance and a modern, professional appearance, making it suitable for exposed installations.

Product Specifications:

• Product Type: Angled Service Valve

• Connection Sizes: 15mm compression x 1/2″ BSP

• Material: Solid brass body with high-quality chrome plating

• Boxed Weight: 100g

• Orientation: Angled (typically 90°) for versatile pipework routing

• Finish: Polished chrome for aesthetic appeal and rust resistance

• Flow Control: Quarter-turn screw or slotted head for quick shut-off

Key Features:

• Angled Design: Ideal for tight spaces and corner installations, reducing stress on pipework

• Chrome Plated Finish: Provides enhanced durability, corrosion resistance, and a modern, professional look

• Reliable Isolation: Enables quick shut-off of water supply to individual fixtures without affecting the entire system

• Compression Fit: Easy to install without the need for soldering or specialist tools

• Multi-Use Compatibility: Suitable for use with kitchen taps, bathroom basins, toilets, washing machines, and more

• Leak-Resistant Seal: Engineered for secure and reliable water-tight connections

Applications:

• Domestic and commercial plumbing systems

• Under-sink or behind-appliance installations

• Kitchen, bathroom, utility room, and WC isolation points

• Ideal for maintenance or emergency shut-off without disrupting main supply

Installation Instructions:

1. Shut Off Water Supply: Ensure the water is turned off at the mains or local supply point.

2. Prepare Pipework: Cut and clean the copper pipe where the valve will be installed.

3. Fit Compression End: Slide on the compression nut and olive, then insert the pipe into the valve’s 15mm end.

4. Secure Threads: Connect the 1/2″ BSP end to the fixture or hose using PTFE tape if needed for sealing.

5. Tighten Fittings: Use appropriate tools to tighten the compression fitting and the threaded connection.

6. Check Operation: Slowly reopen the water supply and check for leaks. Operate the valve to ensure proper flow control.

Care & Maintenance:

• Periodically check for signs of corrosion or leaking, especially around joints

• Operate the valve occasionally to prevent seizing from long periods of inactivity

• Clean exposed surfaces with a soft cloth to maintain the chrome finish

Frequently Asked Questions (FAQ):

Q1: What is the purpose of an angled service valve?
It allows easy access to isolate water supply to a single fixture, particularly in tight or angled spaces.

Q2: Can this be used with plastic pipes?
Yes, but ensure proper pipe inserts are used when connecting to plastic piping systems.

Q3: Is PTFE tape required for installation?
PTFE tape may be used on the threaded (1/2″) end to ensure a leak-free seal; it is not required for the compression fitting.

Q4: Does the valve require special tools for installation?
No, only standard plumbing spanners or adjustable wrenches are typically needed.

Conclusion:

The Securplumb Angled Chrome Plated Service Valve 15 x 1/2″ combines durability, aesthetic appeal, and practical functionality in a single, essential plumbing component. Perfect for isolating water supply lines with minimal hassle, it is a must-have for both professional installers and DIY enthusiasts aiming to maintain or upgrade plumbing systems cleanly and efficiently.
