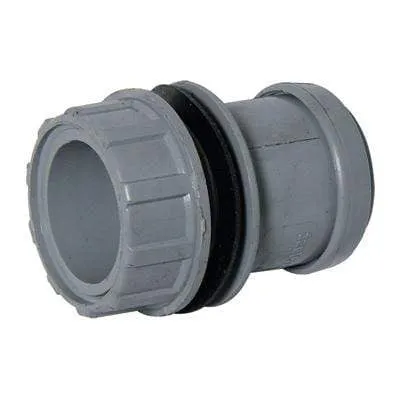

Push-Fit Waste Tank Connector – All Sizes

Push-Fit Waste Tank Connector – All Sizes
Tank connectors are most commonly used in commercial applications in situations where a number of tanks need to be linked together. The threaded nut is unscrewed and the fitting is pushed through the hole in the tank so that the flange of the tank connector rests against the tank wall. The nut is then tightened, allowing the washer to make the seal against the tank wall.

In addition to plumbing installations, tank connectors are commonly used in the fish keeping and pond industries.

This push fit waste system is manufactured in the UK to BS EN 1451 and is British Standard kitemarked.

When making a push fit joint, cut the pipe square and remove any burrs, push the pipe into the fitting as far as it will go and then withdraw it by approximately 10mm to allow for any expansion. The joint can be taken apart again if required, but always check that the O ring has not been dislodged from its housing groove in the fitting as this will cause the joint to leak.

Features and Properties

• CE Standard (Tested to EN…): BS EN 1451-1:2000/BS 5254
• Available Colours: White, Black, Grey
• Construction Material (Plumbing): Polypropylene
