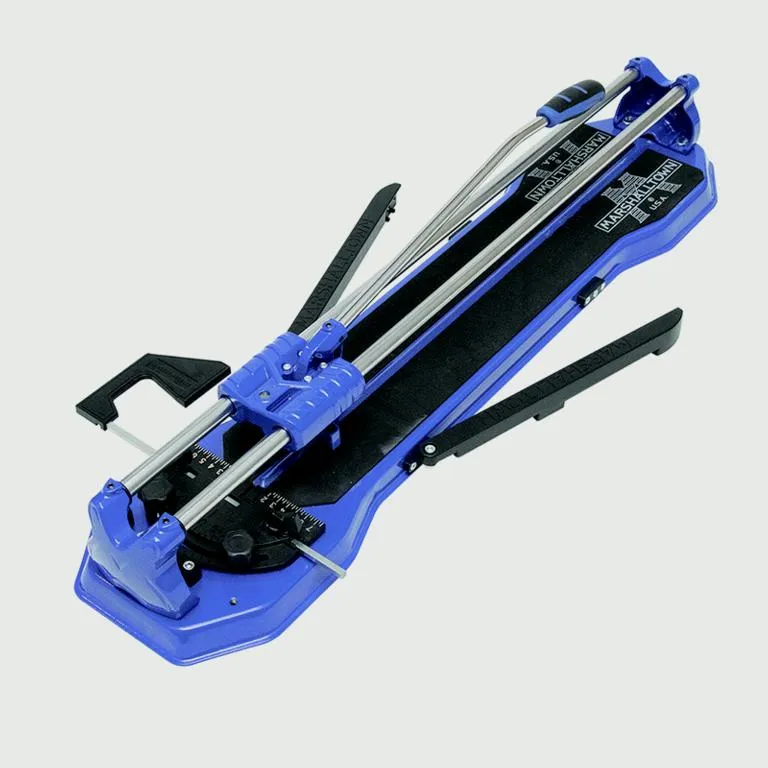

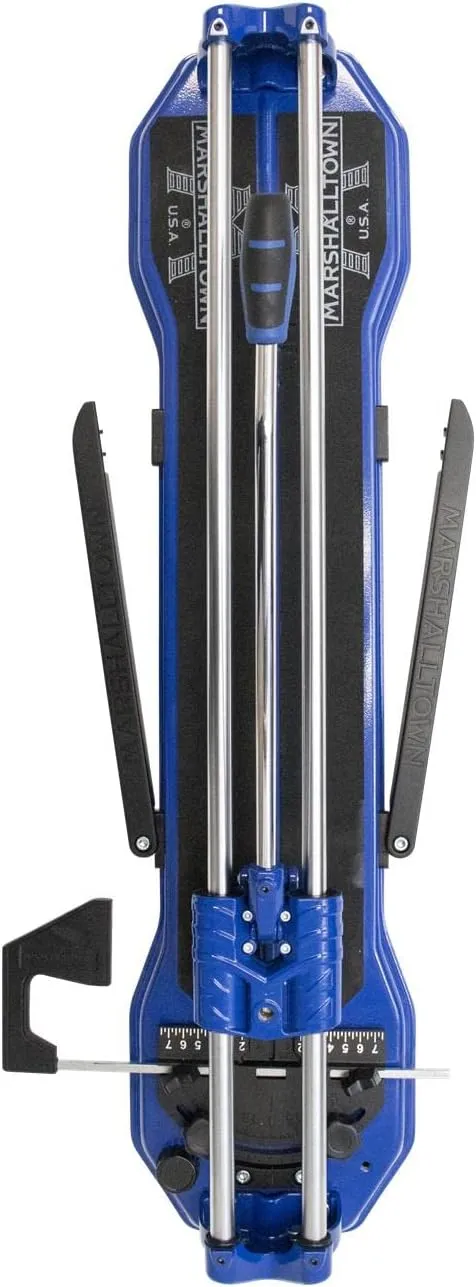

Marshalltown Tile Cutter

The Marshalltown Manual Tile Cutter is engineered for accuracy, durability, and ease of use—making it a dependable choice for both professional tilers and DIY enthusiasts. Available in 17-inch and 24-inch sizes, this manual tile cutter provides smooth and precise cuts on a wide range of tile materials, including ceramic, porcelain, and mosaic.

Both models feature a robust two-rod rail system for stable, controlled scoring and snapping. Each size comes equipped with a tungsten carbide scoring wheel, ensuring clean cuts on tiles up to 12mm thick. Whether you’re handling intricate backsplash jobs or larger flooring projects, the Marshalltown Tile Cutter delivers the control and cutting power you need for reliable results every time.

Available Sizes & Specifications:

Model Size	Max Cut Length	Max Tile Thickness	Scoring Wheel Size	Box Dimensions (W x H x D)	Boxed Weight
17″	432 mm	12 mm (½”)	5/8″ (15 mm)	17.0 cm x 57.0 cm x 11.0 cm	3.3 kg
24″	610 mm	12 mm (½”)	7/8″ (22 mm)	19.5 cm x 86.0 cm x 13.5 cm	8.0 kg

Key Features:

Versatile Cutting Capability: Cuts ceramic, porcelain, and mosaic tiles with ease.
High-Quality Tungsten Carbide Scoring Wheel:
- 17″ model: 5/8″ (15 mm) wheel
- 24″ model: 7/8″ (22 mm) wheel
Smooth Two-Rod Rail System: Enhances stability and provides effortless scoring and snapping.
Precision Cutting Guide: Adjustable measuring bar ensures accurate, repeatable cuts.
Durable Build Quality: Designed for long-term use in tough worksite environments.

Product Uses:

Cutting wall and floor tiles with precision
Suitable for straight and diagonal tile cuts
Ideal for tiling kitchens, bathrooms, and commercial spaces

Country of Origin & Commodity Code:

Country of Origin: China
Commodity Code: 8441107000

Frequently Asked Questions (FAQ):

Q: Can this tile cutter handle thick porcelain tiles?
A: Yes, both models are capable of cutting tiles up to 12mm (½”) thick, including porcelain.

Q: Is the scoring wheel replaceable?
A: Yes, the tungsten carbide scoring wheel can be replaced when worn out, extending the lifespan of your tool.

Q: Does it come preassembled?
A: The tile cutter comes mostly assembled and ready to use. Some minimal setup may be required to adjust the measuring guide.

Q: Is the measuring guide metric or imperial?
A: The adjustable guide is marked for precise measurements in both metric and imperial units, depending on the region.

Q: Can it cut mosaic tiles cleanly?
A: Yes, its scoring wheel and smooth rail system allow for clean scoring and snapping on mosaic tiles as well.

Warranty Information:

The Marshalltown Tile Cutter is backed by a limited manufacturer’s warranty covering defects in materials and workmanship. The warranty excludes damage from misuse, abuse, or normal wear of consumable components such as the scoring wheel. Always retain your proof of purchase for warranty service.

Option	17", 24"
